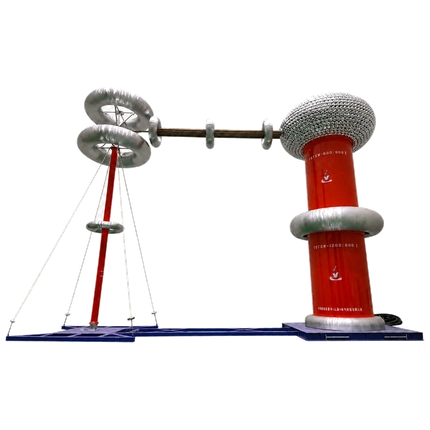

Inductance-Tuned Series Resonant Test System

Application

The tuned series resonance test set is primarily used for AC withstand voltage tests and partial discharge tests on SF6 circuit breakers, GIS units, capacitive transformers, converter transformers, power cables, cable accessories, and other high-capacity power equipment at voltage levels of 1,000 kV and below.

Functions and Features

1. Compact and lightweight

2. High Q-factor, with a maximum value of up to 150

3. The input power capacity is only 1/Q of the output capacity.

4. Low noise and minimal partial discharge, representing a world-leading standard

5. No transient overvoltage occurs after the test specimen experiences a flashover
