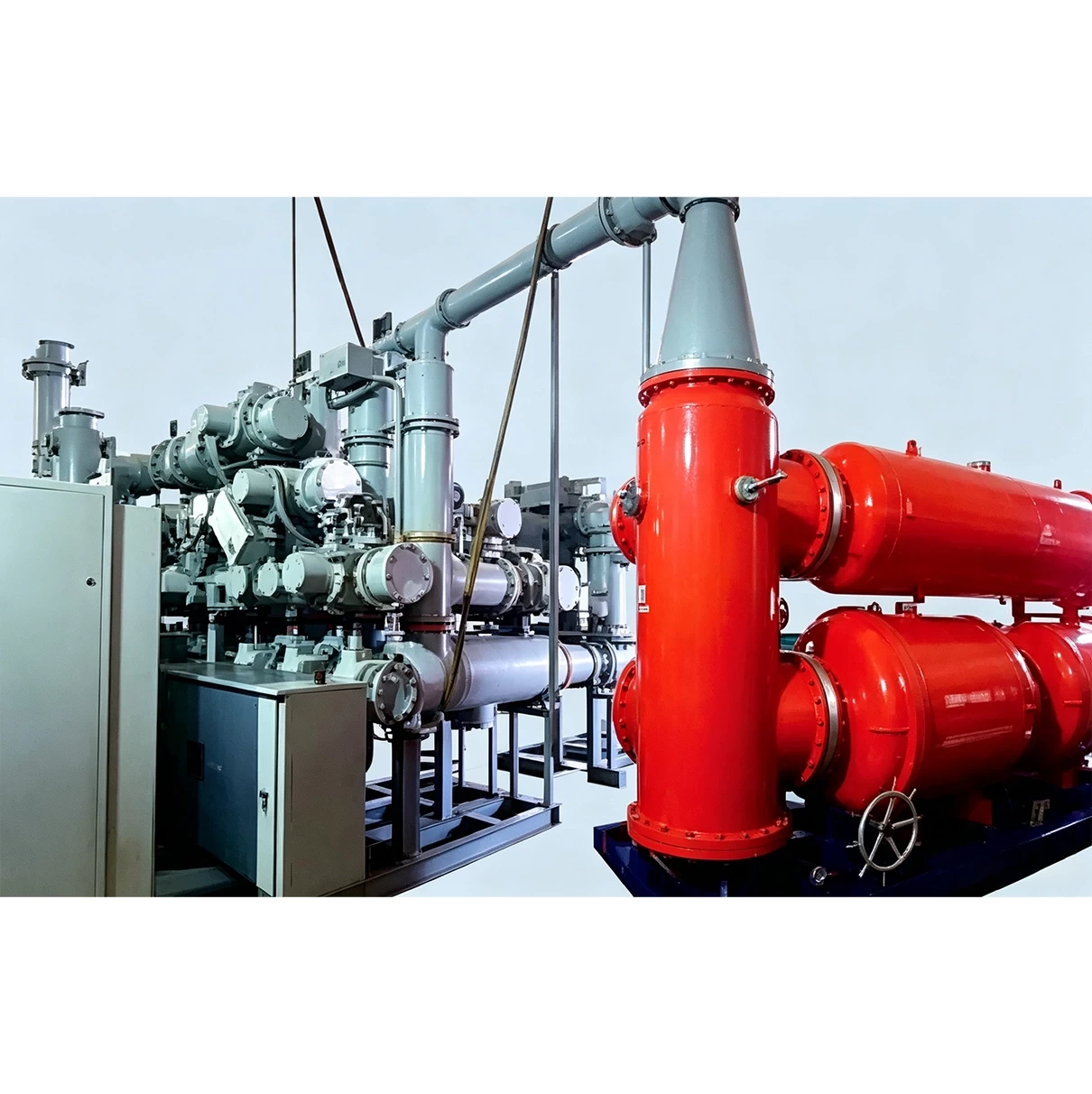

Gas reactor

The gas-insulated reactor is used for reactive-power compensation and resonance matching in high-voltage AC test systems. It works with the test object capacitance and test power supply to establish resonant conditions and reduce the required input capacity.

Features

• Low partial discharge level

• Stable resonance performance

• Wide frequency adaptability

• Compact gas-insulated design

• Flexible series or cascade connection

Applications

Series resonant withstand voltage and partial discharge tests for GIS, GIL, power transformers, cables, bushings, and other large-capacitance test objects.
