PTTS

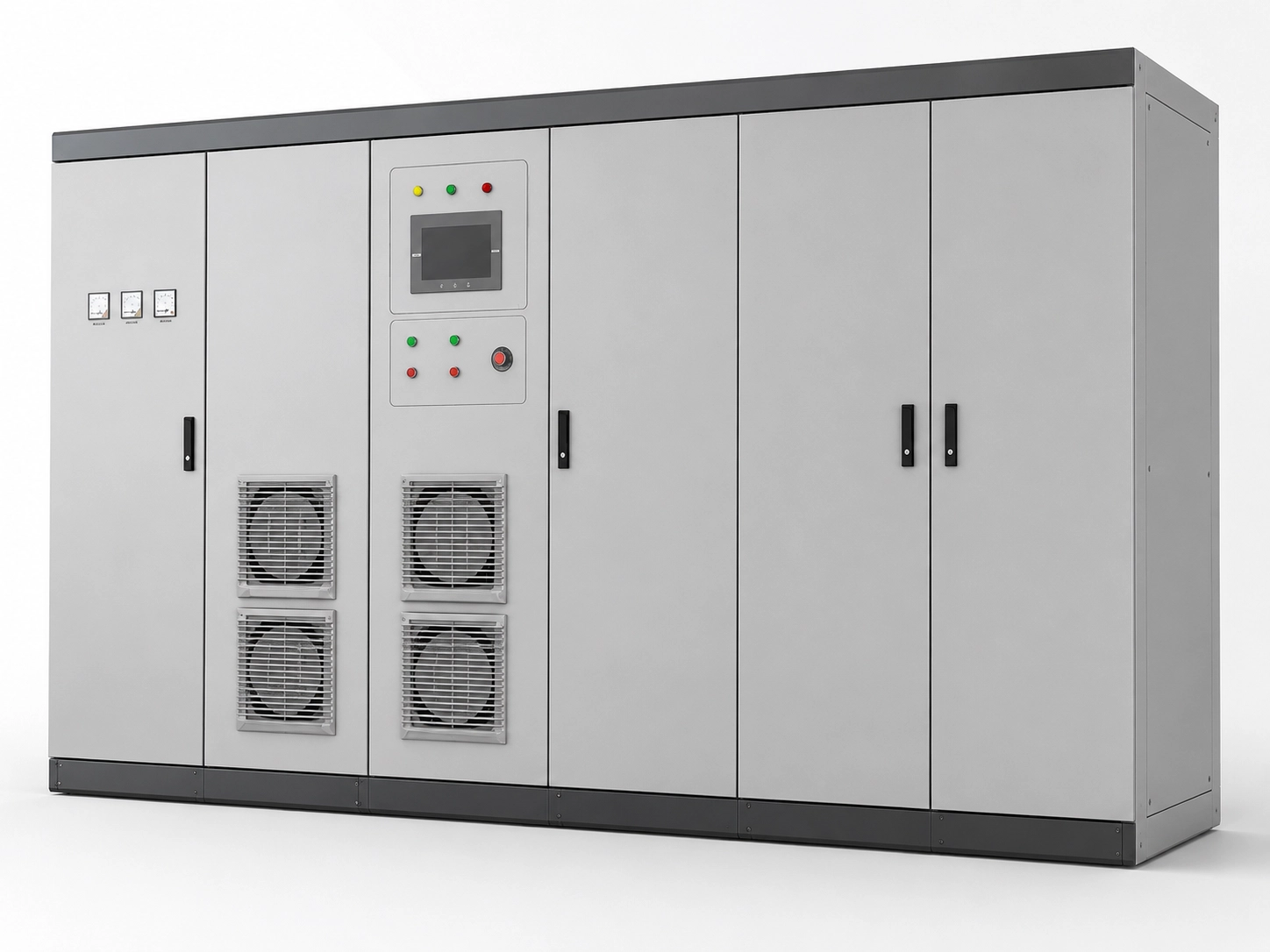

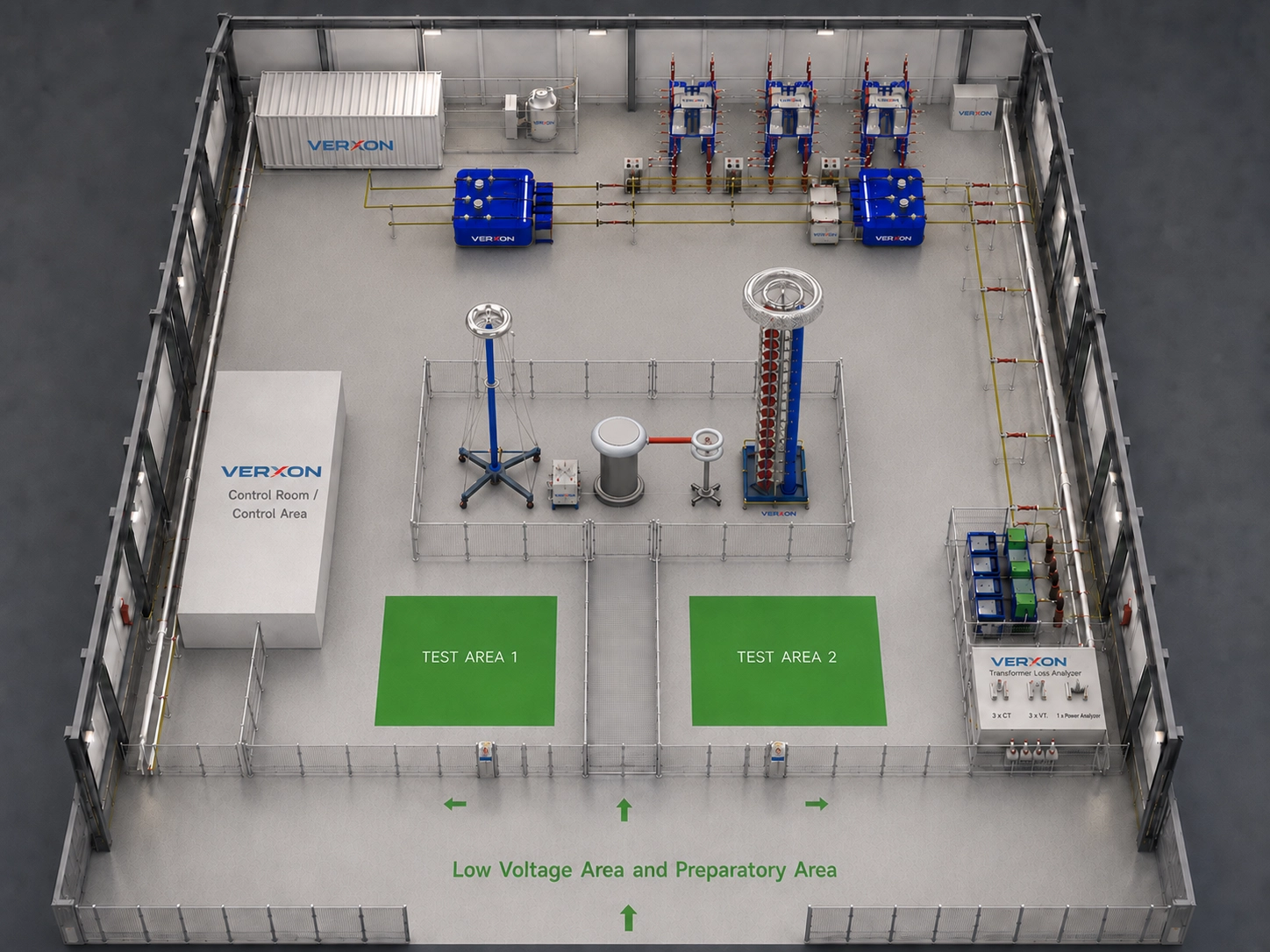

PTTS (Power Transformer Test System) is an integrated testing solution for power transformer performance and insulation assessment. It combines test power supply, measurement, control, protection and data management into a unified system, supporting efficient and reliable execution of transformer electrical and dielectric tests.
Applications
Transformer factory testing
Transformer type and routine testing
Transformer acceptance testing
Substation commissioning
Transformer maintenance and diagnostic testing
Routine Test
Measurement of D.C. winding resistance.
Measurement of voltage ratio.
Check of voltage vector relationship.
Measurement of No-load loss & current harmonics analysis of No-load current.
Measurement of load loss & short-circuit impedance.
Calculation of total loss, impedance, regulation & efficiency.
Tap changer operation.
Measurement of insulation resistance.
AC voltage withstand test.
Induced AC voltage test with partial discharge.
Measurement of dissipation power factor (tan δ) and capacitance.
Bushing current transformer test (BCT).
Type Tests
Temperature rise test.

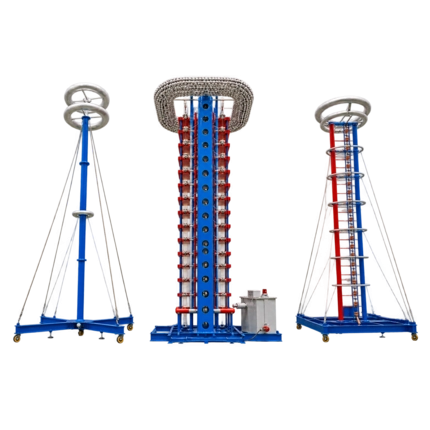

Lightening & switching impulse test.
Sound Level test.
Special Tests
Sweep frequency response analysis.
Partial discharge tests.
Dissolved Gas Analysis (DGA).
