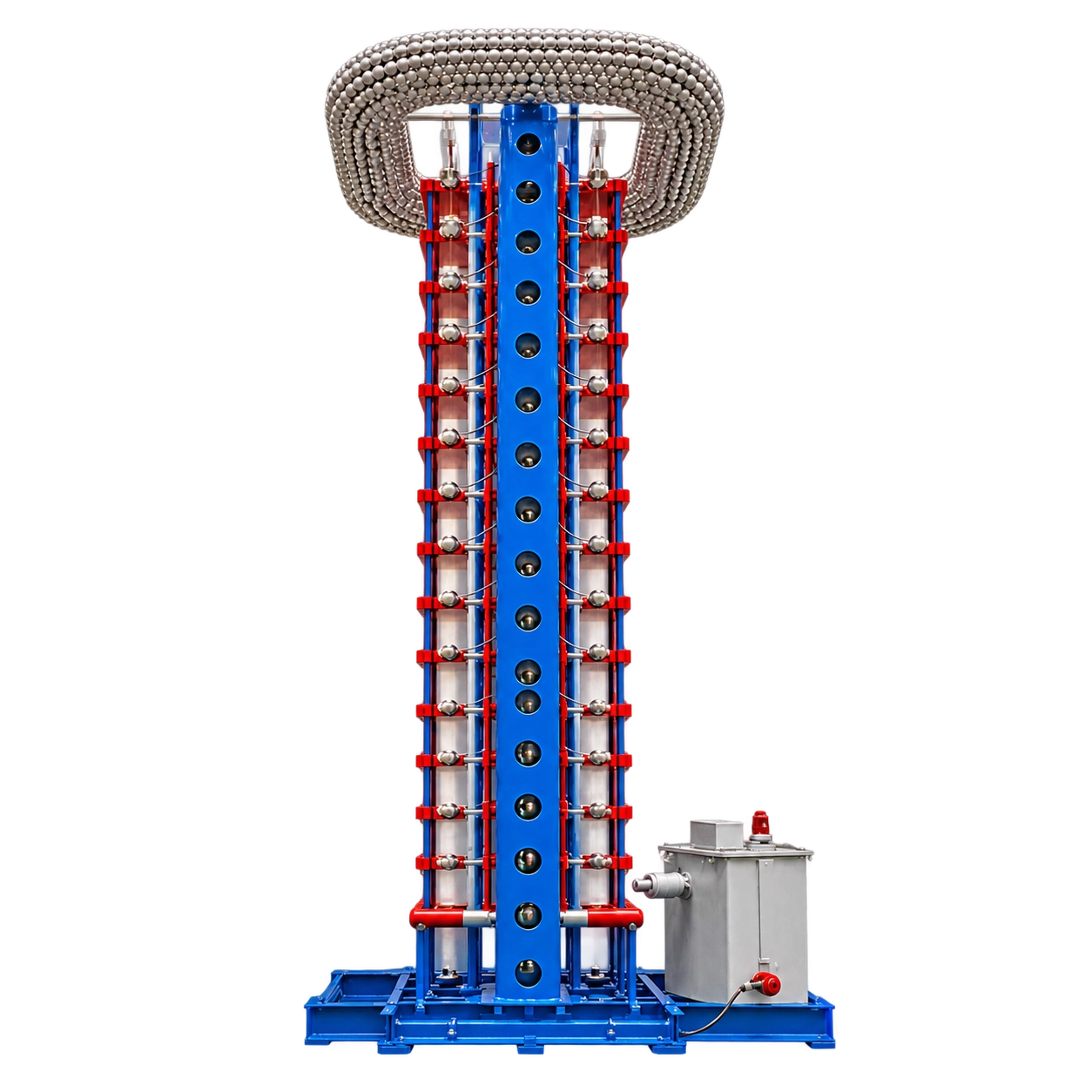

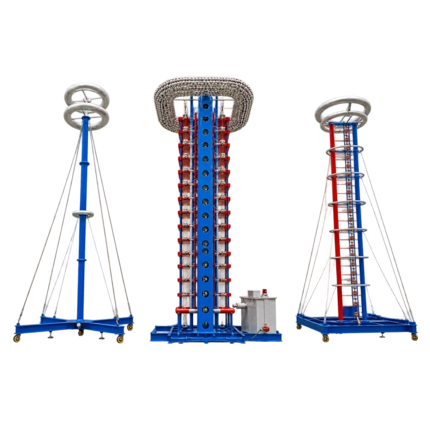

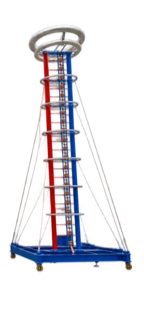

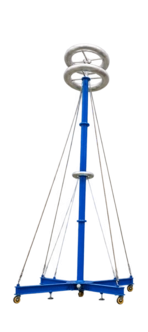

Impulse voltage Generator
This series of impulse voltage generators is primarily used to perform impulse voltage tests—including full-wave lightning impulse voltage, truncated lightning impulse voltage, switching impulse voltage, and steep-front voltage—on test specimens such as power equipment, in order to evaluate the insulation performance of the products.
Functions
The surge voltage generator can produce waveforms tailored to the testing requirements of different products. These waveforms comply with national and IEC standards and have passed ministerial-level certification. The device’s key technical performance is at the forefront of the domestic industry and matches the advanced level of comparable international products.
Product Factures
1.Complete systems covering a wide range of voltage levels.
2.Low circuit inductance and band-reject filtering ensure standard impulse waveforms under high capacitive loads.
3.High voltage utilization: ≥90% for lightning impulses and ≥70% for switching impulses.
4.Compact design, easy waveform adjustment, simple operation, and reliable synchronization.
5.Automatic thyristor or LC constant-current charging with strong interference immunity.
6.Adjustable electronic or LC chopping delay.
7.Fiber-optic Control & Measurement System with copyright-registered software evaluated against GB/T and IEC standards.
8.Patented main-capacitor short-circuit grounding in ≤2s.
9.Patented automatic wave-front resistor replacement for special designs.
10.Compact, portable lightning surge protectors for on-site distribution equipment.
11.Customized outdoor systems with the same performance and waveforms as indoor models.
